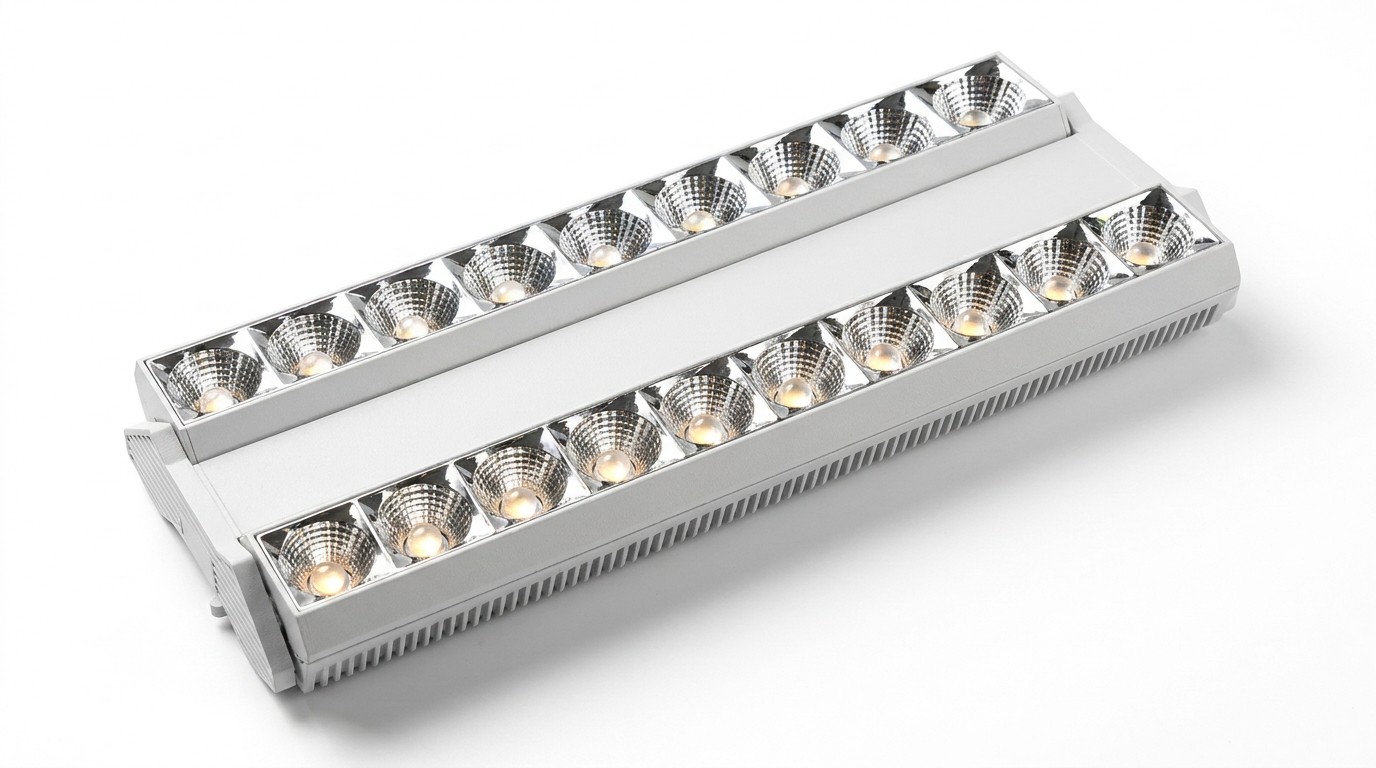

DYL-TL06 Dual-Row LED Linear Track Light for Retail & Display Lighting
The DYL-TL06 Series is a dual-row LED linear track light developed for retail and display projects where controlled accent lighting, visual comfort and consistent color quality are required across longer visual surfaces.
Instead of concentrating the light source into a single optical row, the DYL-TL06 uses two parallel LED rows with separate optical channels. This wider optical layout helps reduce direct source visibility while creating more continuous illumination across merchandise, shelving and vertical display walls.
The series is available in eight configurations from 220 mm to 1170 mm, with rated power from 36W to 200W, making it suitable for everything from compact boutique displays to long retail walls and large showroom installations.
With multiple beam angles, CRI 90+ options, different CCT configurations and project-specific dimming choices, DYL-TL06 is designed for retail lighting projects, OEM programs and professional lighting specifications.
Why Use a Dual-Row Linear Track Light?
Conventional single-row linear track lights often concentrate output within a relatively narrow optical zone. On long shelves or vertical merchandise displays, this can create strong central brightness while leaving visible transitions between illuminated areas.
The DYL-TL06 distributes the lighting task across two parallel optical rows, providing a wider physical lighting aperture and greater flexibility in controlling the illuminated area.
Depending on mounting height, aiming angle, beam selection and project layout, this architecture can help achieve:
More continuous illumination across long display surfaces.
Reduced direct visibility of high-intensity LED sources.
Better balance between accent lighting and visual comfort.
More flexible coverage for shelving, merchandise walls and showroom displays.
A cleaner alternative to installing multiple individual track spotlights.
Key Features
Dual-Row Optical Architecture
Two parallel LED rows operate through separate optical channels, helping distribute the light output over a wider aperture than a conventional single-row linear spotlight.
The design is particularly suitable for applications where the luminaire is installed parallel to shelves, display walls or merchandise zones.
Eight Length and Power Options
DYL-TL06 is available in eight standard configurations ranging from 220 mm / 36W to 1170 mm / 200W.
This allows designers, contractors and retail lighting buyers to select the appropriate luminaire length according to display dimensions instead of relying on one fixed-size product for every project.
CRI 90+ for Retail Color Quality
Standard configurations are available with CRI ≥90, with higher color-rendering options available for projects requiring more demanding color evaluation.
High color rendering is particularly valuable for fashion, textiles, furniture, artwork, food presentation, jewelry and material displays where accurate visual perception affects the customer experience.
15°, 24° and 36° Beam Options
Different optical distributions allow the DYL-TL06 to be adapted to both focused accent lighting and broader display illumination.
A 15° beam is suited to concentrated highlighting and higher mounting positions.
A 24° beam provides a balanced combination of intensity and usable coverage for many retail applications.
A 36° beam provides wider coverage for shelves, merchandise walls and larger visual surfaces.
Final beam selection should always consider installation height, setback distance, aiming angle and required illuminance.
2700K–6500K CCT Options
The series supports a wide CCT range for different project environments.
Warm color temperatures can support hospitality, boutique and premium retail concepts, while neutral and cooler white options are commonly selected for commercial, showroom and task-oriented display environments.
White and Black Housing Options
White finishes integrate naturally into bright commercial ceilings and open retail interiors.
Black finishes provide a discreet architectural appearance for galleries, premium boutiques, showrooms and darker ceiling environments.
Dimming Options for Project Lighting
Depending on the selected driver and electrical configuration, the DYL-TL06 can be specified with 0-10V, DALI or Triac dimming options.
Dimming requirements should be confirmed during project specification to ensure compatibility with the selected driver, control system and destination market.
Track Adapter Options
Adapter configurations are available for commonly used track systems.
Because track profiles and electrical standards can vary between brands and markets, the track rail brand, model or profile should be confirmed before order placement rather than relying only on a generic “universal track” description.
This is especially important for OEM, European and North American projects.
Technical Specifications
| Model | LED Spots | Rated Power | Length | CRI | CCT | Beam Angle | Dimming Options | IP Rating |
|---|
| DYL-TL06-5 | 5 | 36W (18W + 18W) | 220 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-6 | 6 | 40W (20W + 20W) | 258 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-10 | 10 | 56W (28W + 28W) | 410 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-12 | 12 | 64W (32W + 32W) | 488 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-15 | 15 | 100W (50W + 50W) | 600 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-20 | 20 | 120W (60W + 60W) | 790 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-25 | 25 | 160W (80W + 80W) | 980 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
| DYL-TL06-30 | 30 | 200W (100W + 100W) | 1170 mm | ≥90 | 2700K–6500K | 15° / 24° / 36° | 0-10V / DALI / Triac | IP20 |
Specifications and available driver, optical and control configurations may vary by model and project requirement. Please confirm final specifications before ordering.
Where the DYL-TL06 Works Best
| Application | Lighting Requirement | Recommended Approach |
|---|
| Fashion & Apparel Stores | Accurate color and continuous wall illumination | CRI 90+ or higher, typically 24° or 36° |
| Shelving & Merchandise Walls | Consistent vertical illumination across long surfaces | Select length and beam according to shelf height and setback |
| Jewelry & Watch Displays | Controlled high-intensity accent lighting | Higher CRI and narrower beam where appropriate |
| Art Galleries & Museums | Color accuracy and controlled beam distribution | High CRI, appropriate beam and dimming configuration |
| Furniture & Interior Showrooms | Larger illuminated surfaces with flexible aiming | Medium or wide beam according to mounting geometry |
| Premium Boutiques | Visual comfort with discreet architectural appearance | Black or white housing with project-specific optics |
| Commercial Showrooms | High-output display lighting over longer areas | Longer DYL-TL06 configurations can reduce fixture quantity |
Choosing the Right DYL-TL06 Configuration
The correct model should not be selected by wall length alone.
For example, a 3-meter retail display wall may be illuminated using several different DYL-TL06 combinations depending on the mounting height, distance from the wall, luminaire aiming angle, merchandise reflectance, target illuminance and beam angle.
Using only luminaire length to calculate quantity can result in either excessive overlap or dark areas between fixtures.
For project applications, provide the basic layout dimensions and lighting requirements so the appropriate length, beam angle and quantity can be evaluated before quotation.
OEM / ODM and Project Configuration
The DYL-TL06 Series is suitable for private-label programs, retail lighting suppliers, project contractors, distributors and OEM/ODM customers.
Available project configurations may include different CCTs, beam angles, CRI levels, housing finishes, dimming drivers, track adapters and branding requirements.
Certification requirements should be specified according to the destination market and final electrical configuration. Current certification documentation should always be confirmed for the exact model being ordered.
Information to Include in Your Inquiry
For a faster technical recommendation and quotation, please provide your destination country, track rail type or brand, installation height, distance from the illuminated surface, display or wall dimensions, preferred CCT, CRI requirement, beam angle, dimming requirement and estimated order quantity.
This allows us to recommend a more appropriate DYL-TL06 configuration instead of quoting only by wattage or fixture length.
Request a Project Recommendation or OEM Quotation
Send us your retail layout, lighting requirement or target product specification.
We can help match the appropriate DYL-TL06 configuration to your application and confirm available optical, driver, track adapter and OEM options for your market.
CTA: Request Technical Recommendation & Quotation
Frequently Asked Questions
What is the difference between a dual-row linear track light and a conventional single-row track light?
A dual-row design uses two parallel optical rows instead of concentrating the light source into one line. This creates a wider optical aperture and can provide smoother coverage across shelves and display surfaces while reducing direct visibility of the LED source.
Actual lighting performance depends on beam angle, optical design, mounting height and aiming position.
Is the DYL-TL06 suitable for long retail display walls?
Yes. The series includes lengths from 220 mm to 1170 mm, allowing different combinations to be used across long merchandise walls and shelving systems.
However, fixture quantity should be determined by the required lighting distribution rather than simply dividing the wall length by the luminaire length.
Which beam angle should I choose: 15°, 24° or 36°?
A 15° beam is generally selected for focused accent lighting or longer throw distances.
A 24° beam provides a balanced combination of intensity and coverage for many retail applications.
A 36° beam is useful when wider and more continuous illumination is required across shelves or display surfaces.
Final selection should be based on installation geometry and target illuminance.
Is the DYL-TL06 compatible with 3-wire and 4-wire track systems?
Adapter options are available for commonly used track systems, but track compatibility should be confirmed against the exact rail profile, brand and destination market before ordering.
This is more reliable than assuming that every track adapter described as “universal” will fit every rail system.
Can the DYL-TL06 support DALI, 0-10V or Triac dimming?
These dimming configurations are available depending on the selected driver, wattage and project requirements.
Please specify the required control protocol during the inquiry stage so driver compatibility can be confirmed.
Can CRI, CCT, beam angle and housing color be customized?
Yes. Project and OEM configurations can include different CRI levels, CCTs, beam angles, housing finishes, drivers, track adapters and branding options, subject to model feasibility and order requirements.
What certification is available for European or North American projects?
Certification requirements depend on the exact product configuration and destination market.
Please specify the target country when requesting a quotation so the applicable certification status and documentation for the selected model can be confirmed before ordering.
